Rocket Control

This example trains a TS-DDR policy for a 1D rocket soft-landing problem under wind uncertainty, then compares it against a rolling-horizon MPC baseline.

The rocket must reach height h = 0 with velocity v = 0 while minimizing fuel usage, subject to random wind disturbances at each of 999 time steps.

Problem formulation

State: (v, h, m) — velocity, height, mass. Action: u — thrust (bounded, discretized into stages). Dynamics (Euler):

\[v_{t+1} = v_t + (u_t - g \cdot m_t + w_t) \cdot \Delta t / m_t\]

\[h_{t+1} = h_t + v_t \cdot \Delta t\]

\[m_{t+1} = m_t - \alpha \cdot u_t \cdot \Delta t\]

The policy outputs target states (v̂, ĥ, m̂) at each stage. A small optimization subproblem projects these onto the feasible dynamics and returns the optimal thrust.

using DecisionRules
using JuMP, Ipopt
using Flux
using Statistics, Random

Building the problem

build_rocket_problem creates the deterministic-equivalent JuMP model, and build_rocket_subproblems creates per-stage subproblems for stage-wise training.

include("build_rocket_problem.jl")

det, state_in, state_out, x0, uncertainty, x_v, x_h, x_m, u_max =
    build_rocket_problem(; penalty=1e-5)

subproblems, state_in_s, state_out_s, x0_s, uncertainty_s, v, h, m, u_max_s =
    build_rocket_subproblems(; penalty=1e-5)

Policy

A small LSTM-based network maps [wind_t; v_t; h_t; m_t] → [v̂, ĥ, m̂]:

policy = Chain(
    Dense(4, 32, sigmoid),
    x -> reshape(x, :, 1),
    Flux.LSTM(32 => 32),
    x -> x[:, end],
    Dense(32, 3),
)

Training

Deterministic equivalent: couples all stages into one NLP.

train_multistage(
    policy, x0, det, state_in, state_out, uncertainty;
    num_batches=10, optimizer=Flux.Adam(),
)

Stage-wise subproblems: sequential per-stage solves.

train_multistage(
    policy, x0_s, subproblems, state_in_s, state_out_s, uncertainty_s;
    num_batches=10, optimizer=Flux.Adam(),
)

MPC Baseline

The rolling-horizon MPC baseline re-solves the full remaining horizon at each stage with perfect knowledge of the current state but no future wind information. See run_mpc_rocket.jl.

Results

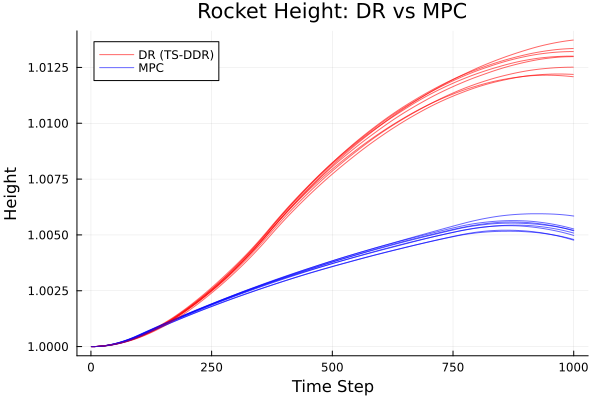

Height trajectories for the common saved evaluation seeds:

The table uses the first saved trajectory for each common seed in examples/rocket_control/dr_results and examples/rocket_control/mpc_results.
